Autonomous driving relies heavily on advanced sensing technologies to perceive and interpret the environment accurately. These technologies are the foundation of a vehicle's ability to navigate, avoid obstacles, and ensure passenger safety. Among the various sensors used, LiDAR and millimeter wave radar stand out as two of the most critical components in the autonomous driving ecosystem.
LiDAR (Light Detection and Ranging) and millimeter wave radar are both essential for autonomous vehicles, but they operate on fundamentally different principles. LiDAR uses laser pulses to create high-resolution 3D maps of the environment, while millimeter wave radar relies on radio waves to detect objects and measure their speed and distance. Together, they provide a comprehensive sensing solution that enhances the vehicle's perception capabilities.
Technical Characteristics
LiDAR Fundamental Principles

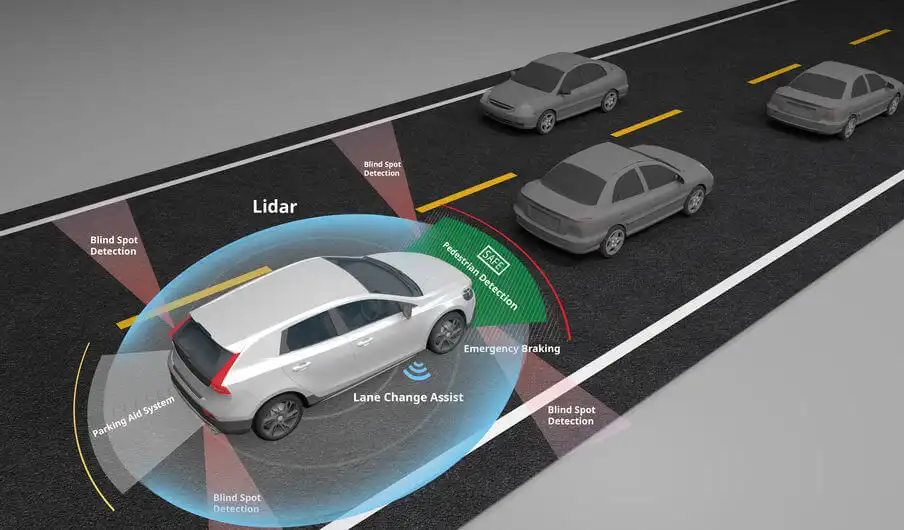

LiDAR, which stands for Light Detection and Ranging, operates by emitting laser beams in the form of short pulses of light. These laser beams travel through the air and strike objects in the environment. When the light hits an object, it reflects back to the LiDAR sensor. The sensor measures the time of flight (ToF), which is the time elapsed between the emission of the laser pulse and its return after reflection. By knowing the speed of light, the sensor calculates the distance between itself and the object using the formula:
Distance = (Speed of Light × Time of Flight) / 2.
This process is repeated thousands of times per second, generating a vast number of distance measurements that collectively form a 3D representation of the surroundings.
The data collected by the LiDAR sensor is processed to create 3D point clouds. Each point in the cloud represents a single laser beam reflection and contains precise spatial coordinates (X, Y, Z) of the object it hit. These point clouds provide a highly detailed and accurate map of the environment, capturing the shape, size, and location of objects. For instance, LiDAR can distinguish between a tree, a car, or a building based on the spatial arrangement of the points.
LiDAR excels in detecting static objects, such as buildings, trees, road signs, and other stationary features of the environment. Its high-resolution mapping capability allows it to identify fine details, such as the curvature of a road or the exact position of a traffic barrier. This is particularly useful in urban environments, where complex and static structures dominate the landscape.
One of LiDAR’s standout features is its ability to provide highly accurate depth information. Unlike cameras, which rely on 2D imagery and can struggle with depth estimation, LiDAR directly measures distances in three dimensions. This makes it invaluable for tasks like object localization, obstacle avoidance, and path planning. For example, an autonomous vehicle can use LiDAR data to determine the exact distance to a pedestrian crossing the street or the precise width of a lane.
LiDAR’s precise depth perception and ability to generate detailed 3D maps make it a cornerstone of autonomous driving systems. It is used for:
- Object Detection and Classification: Identifying and distinguishing between cars, pedestrians, cyclists, and other road users.
- Environmental Mapping: Creating real-time maps of the vehicle’s surroundings, including roads, buildings, and landscapes.
- Localization and Navigation: Helping the vehicle understand its exact position within the environment, even in challenging conditions like tunnels or underpasses.
Despite its strengths, LiDAR faces some limitations:
- Weather Sensitivity: LiDAR’s performance can degrade in adverse weather conditions, such as heavy rain, fog, or snow, as the laser beams may scatter or be absorbed.
- Cost: High-end LiDAR systems remain expensive, although costs are decreasing with advancements in technology and mass production.
- Resolution Trade-offs: While LiDAR provides excellent depth accuracy, its resolution is typically lower than that of high-definition cameras.
While LiDAR is a powerful sensing technology, it is often used in conjunction with other sensors like cameras, millimeter wave radar, and ultrasonic sensors. This multi-sensor approach ensures that the autonomous vehicle has a comprehensive and redundant perception system. For example, while LiDAR excels in mapping static environments, radar complements it by detecting moving objects in adverse weather conditions, and cameras provide color and texture information for better object classification.
LiDAR is expected to play an increasingly critical role in the future of autonomous driving. As technology advances and costs decrease, it is likely to become a standard component in self-driving vehicles. Additionally, LiDAR’s applications are expanding beyond automotive, including robotics, drones, smart cities, and environmental monitoring, further driving innovation and adoption.
In summary, LiDAR’s ability to emit laser beams, measure reflections, and generate precise 3D point clouds makes it an indispensable technology for autonomous driving. Its strengths in detecting static objects, providing detailed depth information, and mapping complex environments position it as a key enabler of safer and more efficient self-driving systems.
Millimeter Wave Radar Operational Mechanisms

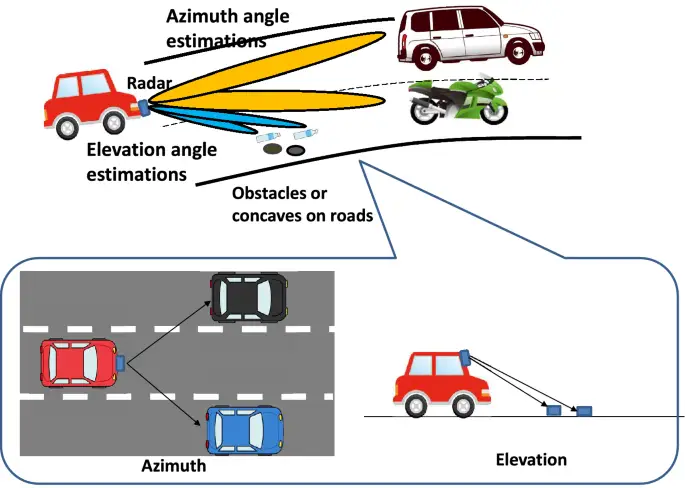

Millimeter wave radar operates by transmitting radio waves in the millimeter wavelength range (typically between 24 GHz and 77 GHz). These waves bounce off objects and return to the radar sensor, allowing it to calculate the object's distance, speed, and angle. Radar excels in detecting moving objects, even in adverse weather conditions, making it a reliable tool for tracking vehicles and pedestrians.
Unique Sensing Capabilities
LiDAR's strength lies in its unparalleled ability to generate high-resolution 3D maps, offering a detailed and precise spatial representation of the vehicle’s surroundings. By emitting laser beams and measuring their reflections, LiDAR creates accurate point clouds that capture the shape, size, and exact position of both static and dynamic objects, such as buildings, trees, pedestrians, and vehicles. This level of detail is particularly valuable for tasks like obstacle detection, path planning, and environmental mapping, especially in urban settings where complex and static structures require meticulous navigation.
However, LiDAR does have limitations in adverse weather conditions, such as heavy rain, fog, or snow, where laser beams can scatter or be absorbed, reducing its effectiveness. In contrast, millimeter wave radar operates by emitting radio waves in the millimeter wavelength range, which are far less affected by challenging weather conditions. Its ability to measure the velocity, distance, and angle of objects, even in low-visibility scenarios, makes it a reliable sensor for tracking moving vehicles, cyclists, and pedestrians, particularly on highways or open roads. Radar’s strength in detecting motion and providing real-time speed data is crucial for collision avoidance and adaptive cruise control systems.
Together, LiDAR and millimeter wave radar complement each other perfectly: LiDAR provides the high-resolution, detailed 3D mapping of the environment that radar cannot achieve, while radar ensures reliable object detection and velocity measurement in conditions where LiDAR might struggle. This synergy enhances the perception system’s robustness, reducing the likelihood of missed detections or false positives and ensuring that autonomous vehicles can operate safely and efficiently across a wide range of driving scenarios. By integrating data from both sensors through advanced fusion algorithms, autonomous driving systems can achieve a more comprehensive and accurate understanding of their surroundings, paving the way for safer, more reliable self-driving technologies.
Performance Advantages
Depth Perception
LiDAR's ability to create detailed 3D maps makes it unparalleled in depth perception. This is crucial for tasks like object detection, lane recognition, and path planning. Millimeter wave radar, while less precise in depth mapping, excels in measuring the relative speed of objects, which is vital for collision avoidance.
Object Detection Accuracy
Both technologies contribute to object detection accuracy. LiDAR provides precise spatial information, while radar offers reliable detection in low-visibility conditions, such as fog or rain. Their combined use ensures that the vehicle can detect and respond to a wide range of obstacles with high reliability.
Environmental Adaptation
Millimeter wave radar performs well in adverse weather conditions, where LiDAR might struggle due to interference from rain, snow, or fog. Conversely, LiDAR provides superior performance in clear conditions, where its high-resolution mapping capabilities shine. This adaptability ensures that autonomous vehicles can operate safely in diverse environments.
Complementary Sensing Capabilities
Scenario-Specific Strengths
LiDAR is ideal for urban environments with complex, static structures, such as buildings, traffic signs, and pedestrians, because its ability to generate high-resolution 3D maps provides the detailed spatial awareness necessary for navigating dense and intricate cityscapes. It excels in scenarios where precision and depth perception are crucial, such as identifying curbs, detecting parked cars, and recognizing lane boundaries, ensuring that autonomous vehicles can maneuver safely through crowded streets and intersections. On the other hand, millimeter wave radar is better suited for highways and open roads, where the primary challenge is detecting and tracking moving vehicles at high speeds.
Radar’s ability to measure the velocity and distance of objects with high accuracy, even in adverse weather conditions like rain or fog, makes it indispensable for adaptive cruise control, collision avoidance, and maintaining safe distances at highway speeds. The robustness of radar in low-visibility situations ensures that autonomous vehicles can react to dynamic changes in traffic flow, such as sudden braking or lane changes, with minimal delay.
Together, LiDAR and millimeter wave radar form a complementary partnership that covers a wide range of driving scenarios: LiDAR provides the detailed, high-resolution mapping and static object detection needed for urban environments, while radar ensures reliable and fast-moving object detection and speed measurement required for highway driving. This dual-sensor approach ensures that autonomous vehicles are equipped to handle the complexities of both city streets and open roads, creating a seamless and safe driving experience across diverse conditions. By leveraging the strengths of each technology, autonomous systems can achieve a more comprehensive understanding of their environment, enhancing safety, reliability, and adaptability in real-world applications.
Data Fusion Strategies
Combining data from LiDAR and millimeter wave radar through sensor fusion enhances the vehicle's perception system. Algorithms integrate the strengths of both technologies, providing a more accurate and reliable understanding of the environment.
Enhanced Perception Reliability
The synergy between LiDAR and millimeter wave radar reduces the likelihood of false positives and missed detections, improving the overall reliability of the autonomous driving system. This is essential for ensuring passenger safety and trust in autonomous vehicles.
Technological Challenges
Current Limitations
Both technologies face challenges, such as LiDAR's high cost and radar's limited resolution compared to LiDAR. Additionally, sensor fusion algorithms must overcome complexities in integrating data from different sources.
Cost Considerations
LiDAR systems are currently more expensive than millimeter wave radar, which can impact the affordability of autonomous vehicles. However, advancements in manufacturing and economies of scale are expected to reduce costs over time.
Performance Optimization
Efforts are underway to enhance the performance of both technologies. For LiDAR, this includes increasing range and resolution, while for radar, improving angular resolution and reducing interference are key focus areas.
Emerging Technological Trends
Advanced Sensor Integration
Future developments will focus on integrating multiple sensors, including cameras, LiDAR, radar, and ultrasonic sensors, to create a more comprehensive perception system. This multi-sensor approach will further enhance the vehicle's ability to navigate complex environments.
AI-Enhanced Perception
Artificial intelligence (AI) and machine learning are playing an increasingly important role in improving sensor data processing. AI algorithms can analyze data from LiDAR and radar more effectively, enabling faster and more accurate decision-making.
Future Development Trajectories
Technological advancements are expected to drive the evolution of both LiDAR and millimeter wave radar. Innovations such as solid-state LiDAR and higher-frequency radar systems will enhance performance and reduce costs, making these technologies more accessible for widespread adoption.
Conclusion
LiDAR and millimeter wave radar are not competitors but complementary partners in autonomous driving. Together, they provide a robust perception system that leverages the strengths of each technology to overcome their individual limitations.
The integration of LiDAR and millimeter wave radar significantly enhances the safety and efficiency of autonomous vehicles. By providing accurate and reliable environmental perception, these technologies enable vehicles to navigate complex driving scenarios with confidence, paving the way for a future of safer and more efficient transportation.
